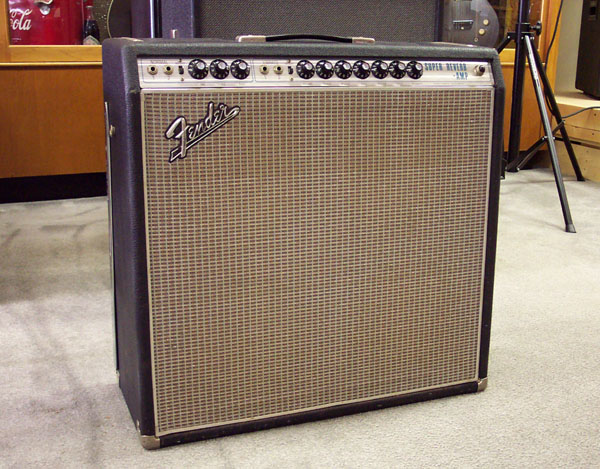

Vintage 1969 Fender Super Reverb Amplifier

Pictured is one of my favorite amps of all time, with two of my favorite guitars. On the wall is a 100% original natural finish 75 Fender Jazz Bass. In hand is a 2000 (I like to call it the Millennium Edition) "90s" Thinline Telecaster. Both great axes, made even greater by a great amp.

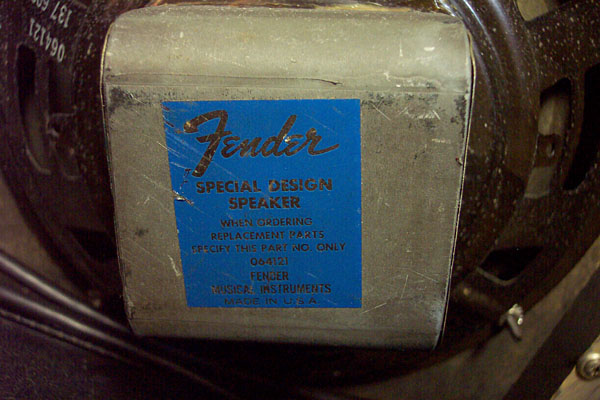

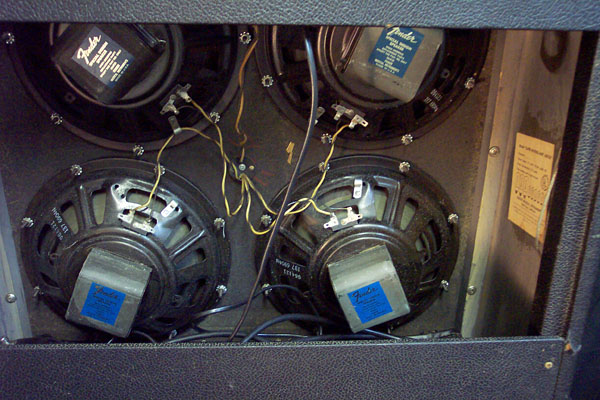

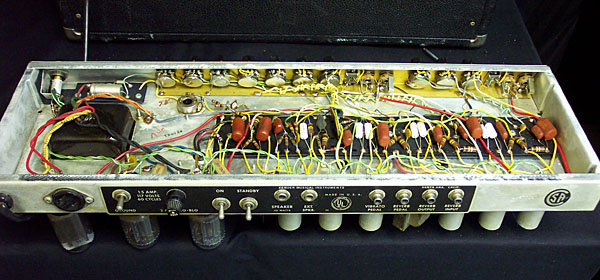

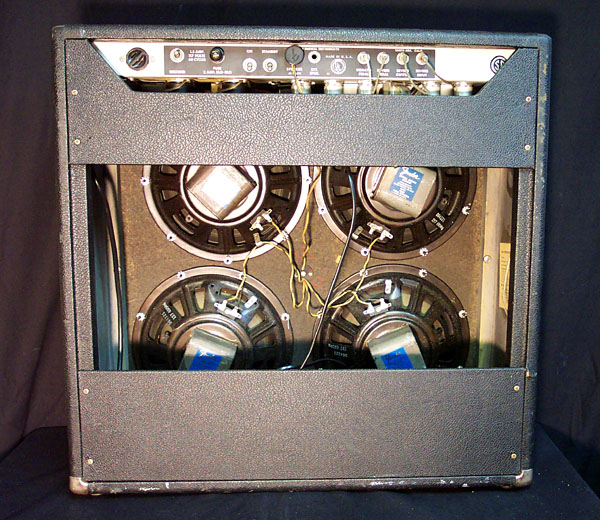

Tubes in this Fender Super Reverb Silverface Amp: 2 x 6L6GC power tubes, 1 x 5U4GB rectifier tube, 2 x 12AT7, 4 x 12AX7 (3 x 7025, 1 x 12AX7) - tubes are all factory RCA originals! 4-10" Special Design Fender speakers (FMI Alnicos, 064121).

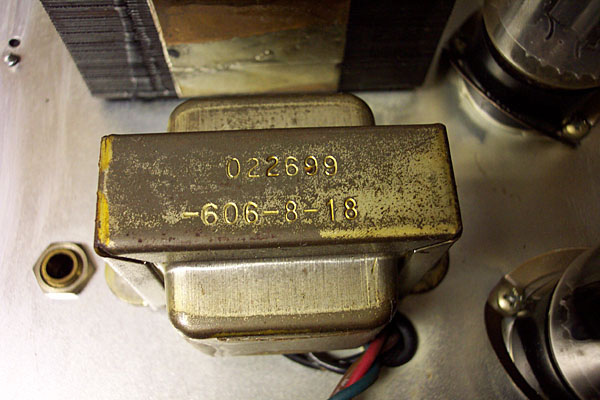

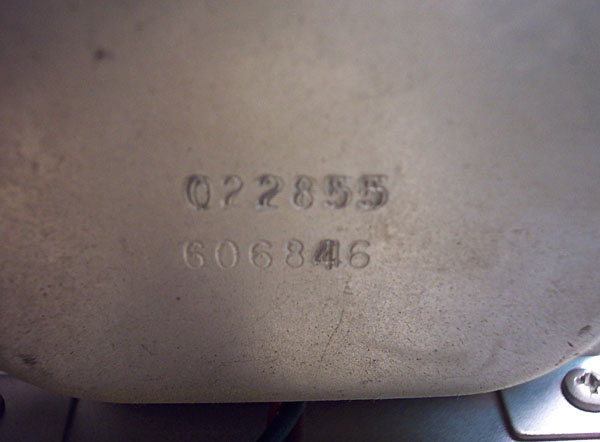

*NOTE* When I bought it, this amp was advertised as a 68, but one of the transformers has a 1969 serial number (the rest have 1968 serial numbers). Fender recommends adding 6 months to your part serial number dates to account for part shelf life prior to assembly. I agree! 1969 is a cool year, so I don't mind a bit.

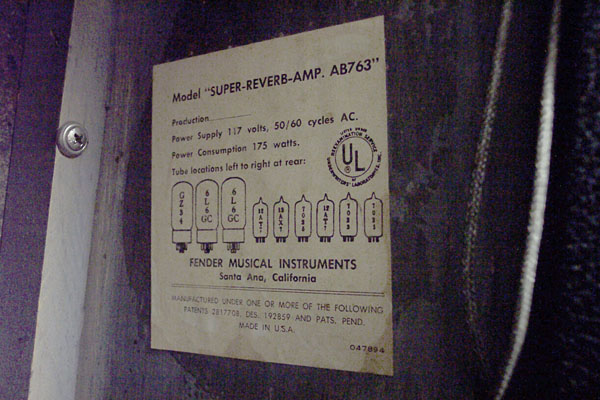

Blackface/Silverface Super Reverb Tube Specs:
4 - 12AX7 = 7025 = ECC83
2 - 12AT7 = 6201 = ECC81
2 - 6L6GC = 7581A
1 - GZ34 = 5AR4 (Later Silverface amps call for a 5U4GB)







Condition:

Excellent plus.  No breaks, no repairs, no modifications, no issues.  Clean!!  All original down to the screws!

Super Clean, Super Original, Super Sound...SUPER REVERB!

1969 Silverface Super Reverb AB568 Schematic, Layout

Most Fender Schematics

Amps Page



(scroll down for photos)
